Atik R1 12V - Light Pro - Outdoor lighting
Atik R1 12V - Light Pro - Outdoor lighting
Couldn't load pickup availability

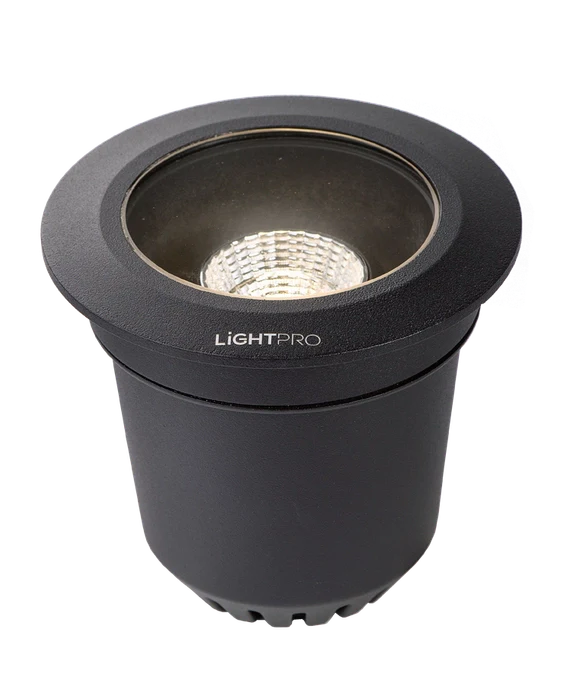

The Atik R1 has a consumption of 9W and a diameter of 12 cm. It is made of aluminum and is available in black. This uplight is dimmable and has a warm, white light source.The light emission can be compared to the large spot (Castor 9), which gives even more light than the Agate. This uplight is dimmable, giving you the desired light efficiency all year long, because you can determine the light intensity yourself. The light source can also be rotated so that the light angle can be set as desired.
• Powerful light source for highlighting a tree or object
• Illuminates up to 15 metres
• Dimmable
• Tiltable light source
Article number: 186U
Please ensure that the maximum cable run does not exceed 80 meters, and that the transformer rating is adhered to, with a maximum of either 100W or 150W for the Touch transformer. Additionally, all transformers must be either boxed or wall-mounted, with a minimum clearance of 0.5 meters from the ground.
Specifications
| Article number | 186U |
|---|---|
| EAN Code | 5907800859973 |
| Warranty (year) | 6 |
| Application | Tree, Hedge, Border, Object / image |
| Dimensions H x W x D | 135 mm x 120 mm x 120 mm |
| Material | Aluminum |
| Colour | Black |
| IP class | IP67 |
| Protection class | III |
| Drill diameter | 100 |
| Wattage (Total) | 9 |
| Lumen (Total) | 750 |
| Amount of lightsources per lamp | 1 |
| Energy class | F |
| Light color | Warm white |
| Kelvin (Color temperature) | 3000 |
| Light source type | COB LED |
| Lightsource includes | Yes |
| Replaceable lightsource | No |
| Light direction | Upwards |
| CRI | 92 |
| Smart | No |
| Cable length (meter) | 1 |
| Cable size | 18AWG |
| Minimum ambient temperature (°C) | -20 |
| Maximum ambient temperature (°C) | 50 |
| Number of luminaires in a pack | 1 |
| Lifetime (hours) | 25000 |
| Dimmer | Yes |
| Dimmer steps | 6 |
| Suitable for external dimmer | No |
| Overpassable | No |
| AC/DC | Yes |
| Supplied accessoires | F-connector |
| Fasteners | Allen key, Ground tube |
| Adjustable | Yes |
| Product weight (kg) | 0.994 |
| Underwater | No |
